Project 27:
The First Computer Designed by AI
.webp)
A single engineer designed and verified working computer using Quilter’s physics-driven AI in less than one week—a task that normally takes an entire quarter.

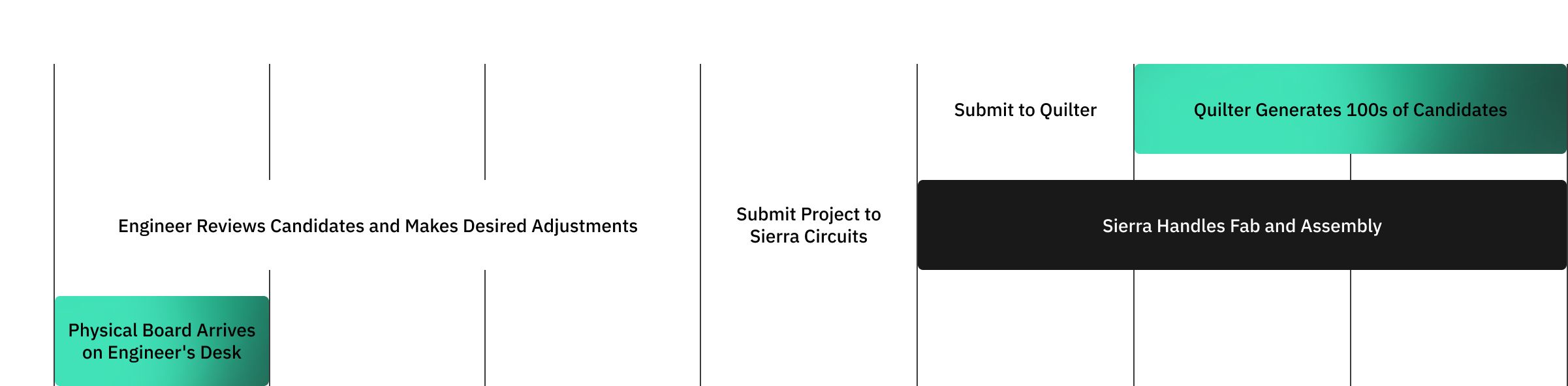

Compress One Quarter Into One Week
10x Your Hardware R&D Speed
An engineer using Quilter completed a full computer design with just 38.5 hours of human input, compared to 428 hours quoted by professional PCB designers for the same project. That 11x time compression doesn’t just lower cost—it rewrites the rhythm of R&D.
Hardware teams can now move from quarterly layout cycles to weekly learning loops, turning every design into an opportunity to test, iterate, and lead faster than competitors.
Compiler for Hardware Elevates the Engineer’s Métier
We chose to base our System-on-Module (SOM) + baseboard designs on the NXP i.MX 8M Mini evaluation platform. Lead engineer Ben Jordan prepared the design and constraints for the boards and submitted the jobs. Quilter ran parallel seeded runs with varied constraints, completing the layout in 27 hours, returning multiple ranked candidates.
Quilter took care of the repetitive design work while the engineer stayed in control. Automation handled placement, routing, and physics checks, freeing him to focus on firmware prep, documentation, and constraint refinement. Common supply-chain hiccups—a few connectors out of stock and a Wi-Fi module dropped—were resolved instantly, with no delay to iteration. Cleanup was minimal: PDN pours, via clusters, and minor footprint swaps—no rip-ups, no re-spins.

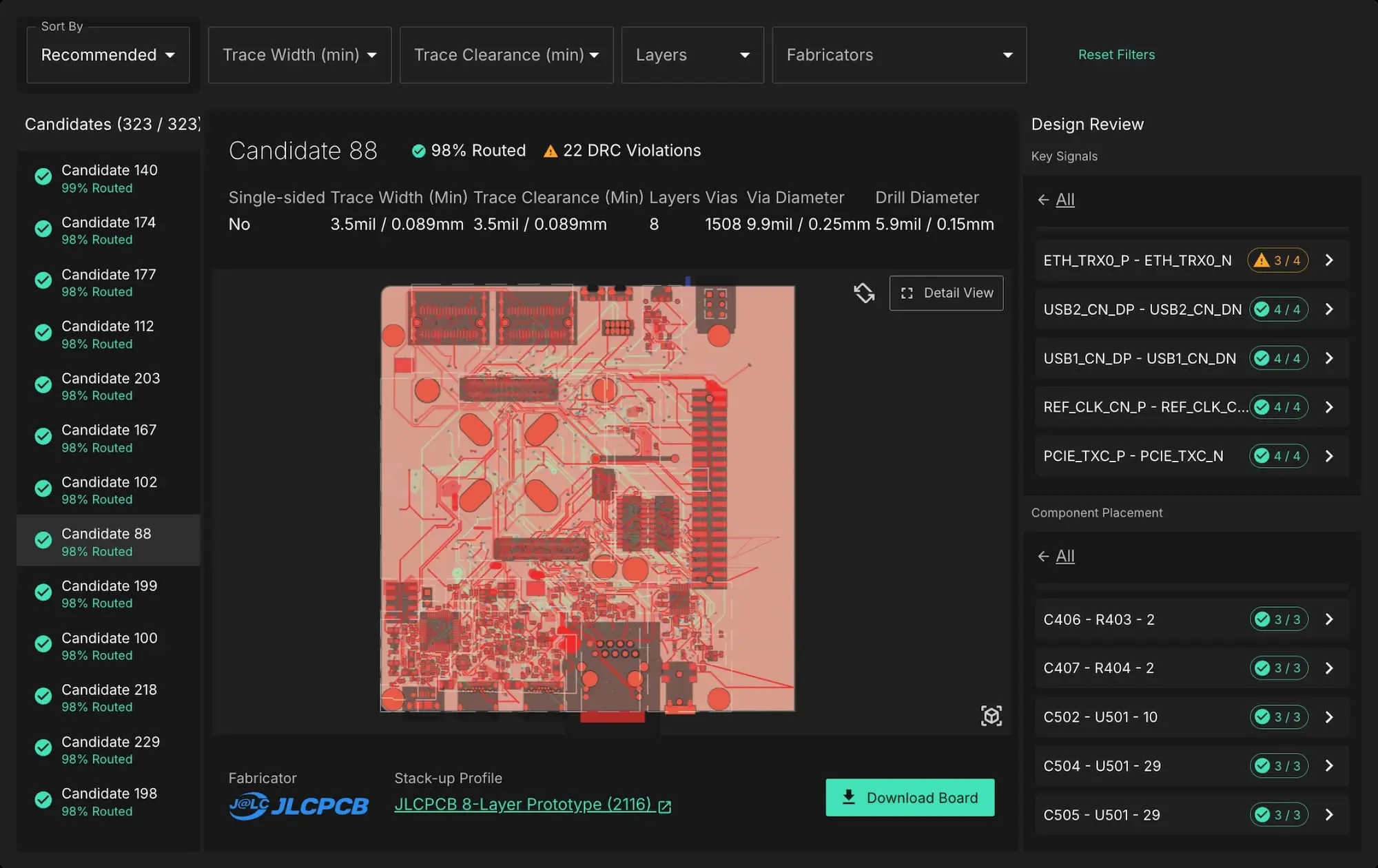

Running the Design Through Quilter
Project 27 proves Quilter’s physics-driven AI has crossed from concept to capability.
Core Architecture
Results
Human Design Hours with Quilter
38.5 hours
Human Design Hours without Quilter
428 hours
Quilter Runtime
27 hours (placement + routing + physics validation)
Routing Completion
98%
Bring-Up Result
First power-up success on both boards—no re-spins
Technical Specifications: What the AI Actually Built
This project demonstrates Quilter’s ability to autonomously complete the complex, embedded computing hardware commonly used in automotive infotainment, safety, and machine-vision systems.
Core Architecture
Processor
NXP i.MX 8M Mini Quad (4 × Cortex-A53 @ 1.8 GHz)
Memory
2 GB LPDDR4 (32-bit bus width)
Storage
32 GB eMMC 5.1 (upgraded from 16 GB reference part)
Flash Memory
32 MB QSPI NOR Flash
Audio
24-bit / 192 kHz DAC, 3.5 mm headphone jack
Networking
10 / 100 / 1000 Mbps Ethernet
Expansion
M.2 connector supporting PCIe, UART, and PCM interfaces
Board Design
Form Factor

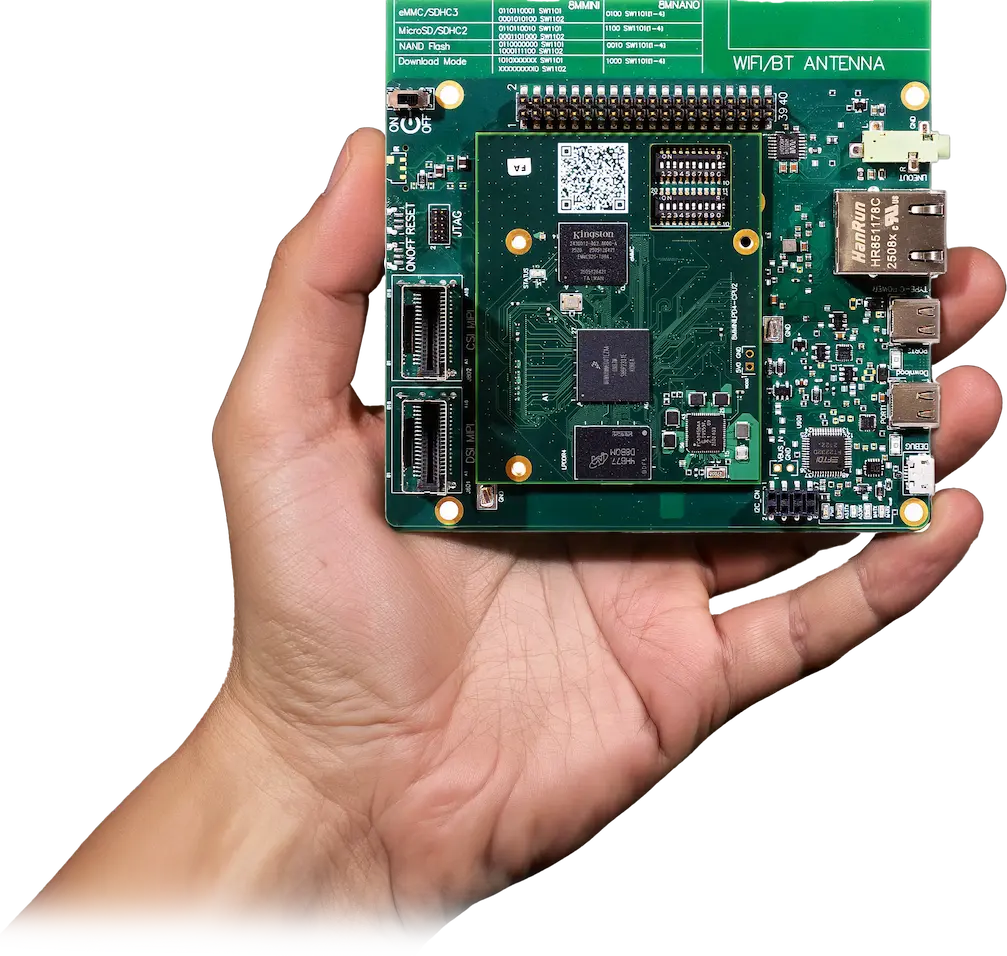

Two-board system: System-on-Module (SOM) + Baseboard
PCB Stack-Up
8-layer HDI architecture, manufactured by Sierra Circuits
Trace / Space Geometry
2 mil (SOM) / 3.5 mil (Baseboard)
Component Count
843 total
Pin Count
5,141 total
Placement & Routing
Fully automated by Quilter AI
Dive Deeper
Get a full picture of how it works and why it matters through detailed stories and technical insights.
Manufactured and Assembled with Sierra Circuits
We partnered with Sierra Circuits for fabrication and assembly. The baseboard was completed on a standard 3-day fab + 3-day assembly schedule, while the SOM’s 2 mil HDI geometry required a longer lead time through Sierra’s advanced HDI precision and quick turnaround process line.
We paid standard commercial rates, used the same ordering process available to any customer, and received no special treatment, demonstrating that anyone can reproduce these results using off-the-shelf services.
